Components Location: Notes

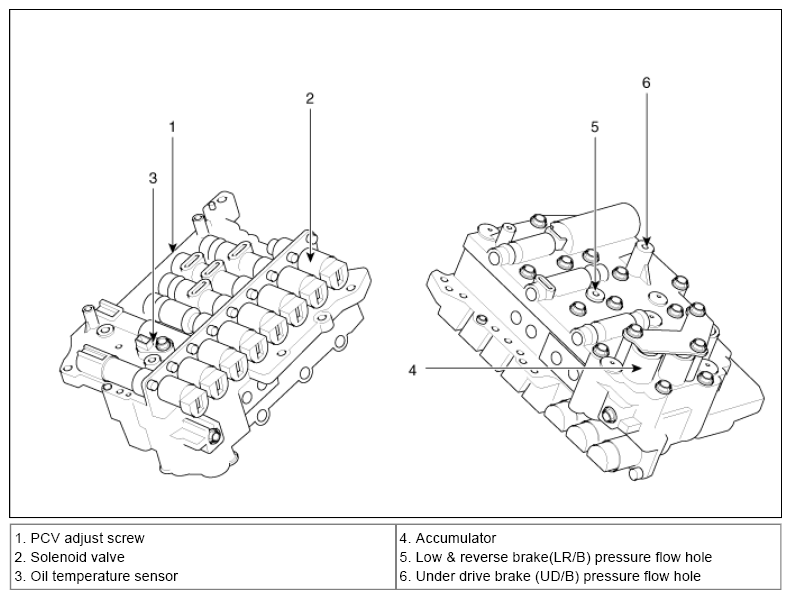

Fig 1: Identifying Valve Body Components

G08321699

Courtesy of KIA MOTORS AMERICA, INC.
