Repair Procedures: Replacement

  1. Remove the heater & blower unit.

    (Refer to HEATER UNIT )

  2. Separate the blower unit from the heater unit after loosening the screws.

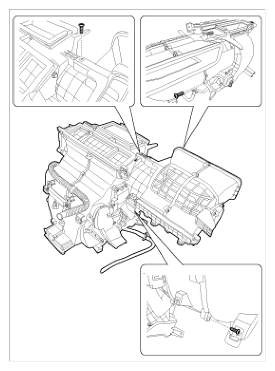

    Fig 1: Identifying Heater Unit Screws
    G08323353Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Make sure that there is no air leaking out of the blower and duct joints.
  3. Install in the reverse order of removal.
