Control Circuit Inspection

Check Open or short in control circuit
1. IG KEY "OFF".
2. Disconnect ECM connector.
3. IG KEY "ON" & ENG "OFF"
4. Measure the voltage between warning lamp control terminal of ECM harness connector and chassis ground.
  Specification: B+

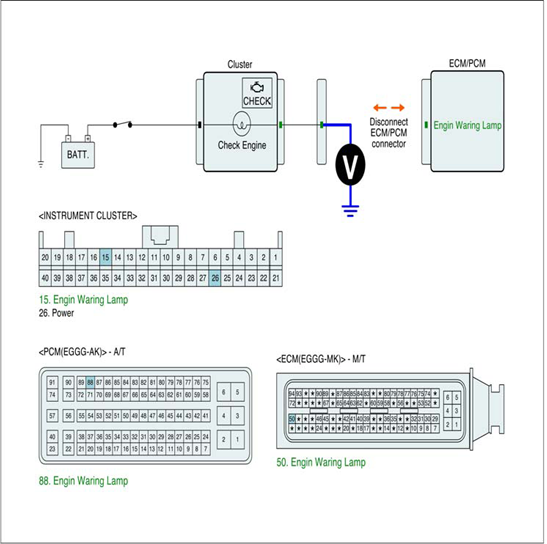

  Fig 1: Measuring Voltage Between Warning Lamp Control Terminal Of ECM Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check the MIL bulb.

  Repair Open or Short in control circuit, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
