Component Inspection

Check CCV
1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector. (Component side)
  Specification: 23 ~ 26 Ω (20°C (68°F))

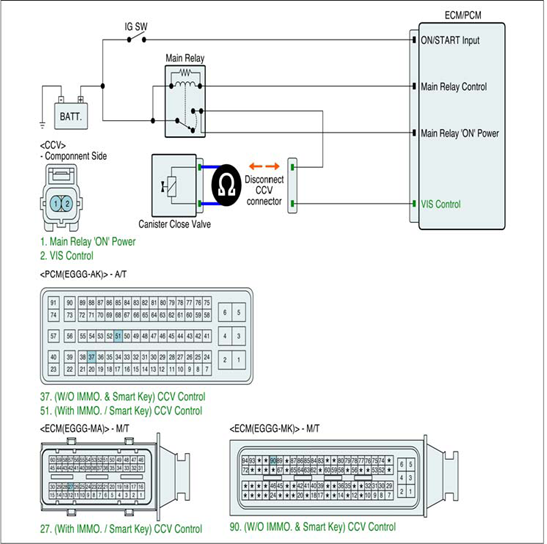

  Fig 1: Measuring Resistance Between CCV Connector Power And Control Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured resistance within specification?
  YES
  - Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known - good CCV and check for proper operation. If the problem is corrected, replace CCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
