Repair Procedures: Replacement

CAUTION:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the Front Driveshaft. (Refer to "FRONT DRIVESHAFT ")
Remove the circlip (B) from the driveshaft spline (A).

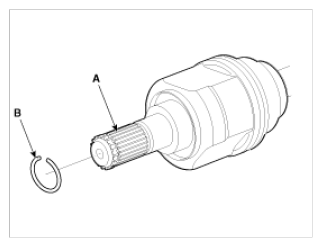

Fig 1: Identifying Circlip And Driveshaft Spline
Courtesy of KIA MOTORS AMERICA, INC.
Remove both boot bands from the TJ case.

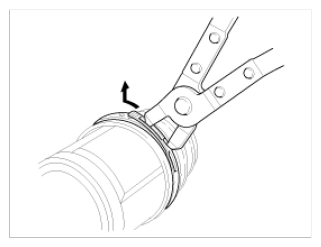

Fig 2: Removing Large Boot Band
Courtesy of KIA MOTORS AMERICA, INC.

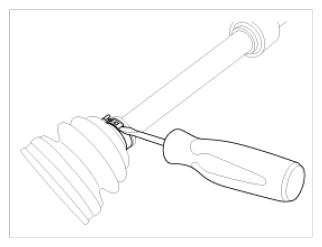

Fig 3: Removing Smaller Boot Band
Courtesy of KIA MOTORS AMERICA, INC.
Remove the TJ case (A).

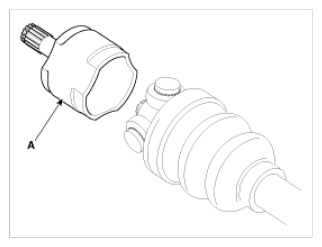

Fig 4: Identifying TJ Case
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.

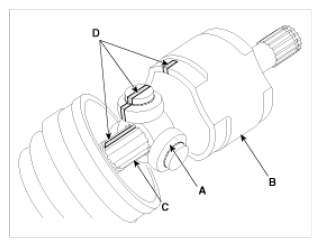

Fig 5: Identifying Spider Roller Assembly, Joint Case And Shaft Spline
Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap ring (A) from the shaft.

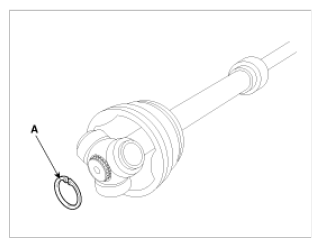

Fig 6: Identifying Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).

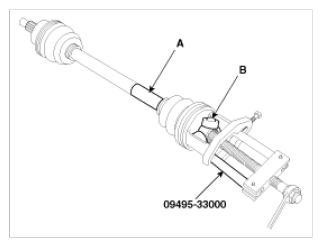

Fig 7: Identifying Spider Assembly And Driveshaft
Courtesy of KIA MOTORS AMERICA, INC.
Clean the spider assembly.
Remove the TJ boot (A).
CAUTION:
- For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).

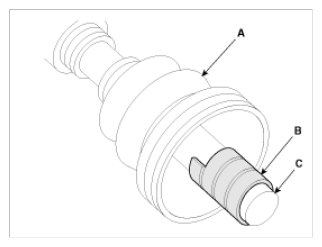

Fig 8: Identifying Boot And Tape Wrap Around Driveshaft Splines
