Home >> Kia >> 2014 >> Rio EX, 4D Hatchback >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> TJ Joint >> Components and Components Location >> Components >> RH

Components and Components Location: Components: RH

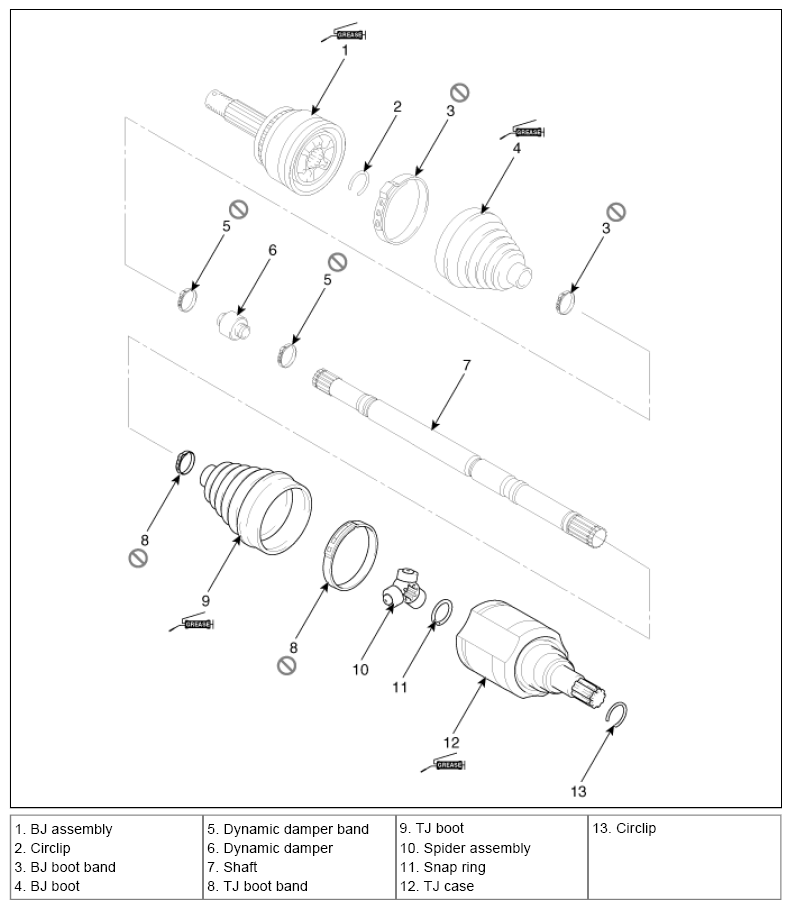

Fig 1: Identifying TJ Joint Components (RH)

G08321843

Courtesy of KIA MOTORS AMERICA, INC.
