Repair Procedures: Replacement

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

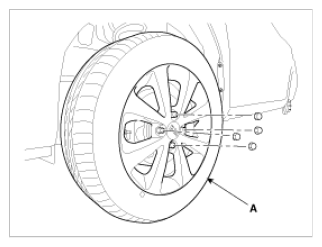

Fig 1: Identifying Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

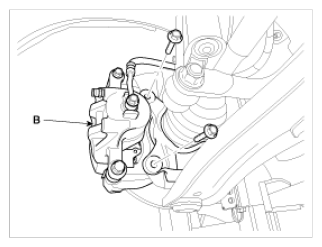

Remove the brake caliper mounting bolts, and then hold the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Fig 2: Identifying Brake Caliper Assembly
Courtesy of KIA MOTORS AMERICA, INC.

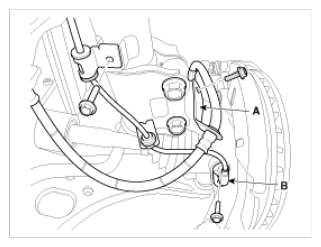

Remove the brake hose bracket (A) & wheel speed sensor (B).

Fig 3: Identifying Brake Hose Bracket And Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

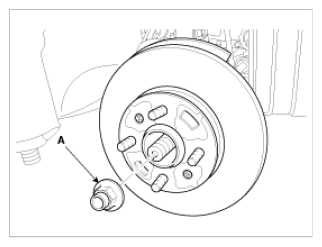

Remove driveshaft nut (A) from the front hub after applying the brake.
Tightening torque:

196.1 ~ 274.5 N.m (20.0 ~ 28.0 kgf.m, 144.6 ~ 202.5 lb-ft)

Fig 4: Identifying Driveshaft Nut
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- The driveshaft lock nut should be replaced with new ones.
- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

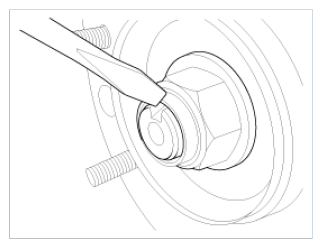

  Fig 5: Staking Lock Nut Using Chisel
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod end ball joint from the knuckle by using the SST (09568-34000).

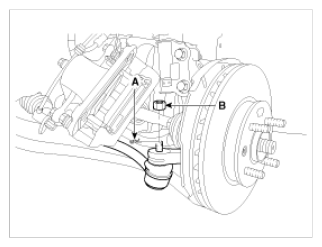

1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Use the SST (09568-34000).
Fig 6: Identifying Split Pin And Castle Nut
Courtesy of KIA MOTORS AMERICA, INC.

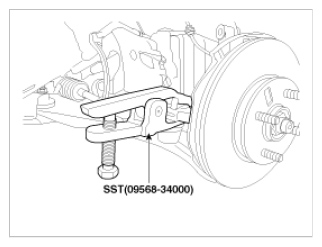

Fig 7: Removing Tie Rod End Ball Joint From Knuckle Using SST (09568-34000)
Courtesy of KIA MOTORS AMERICA, INC.

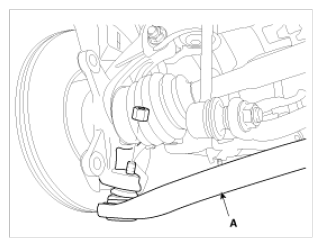

Remove the lower arm (A) from the knuckle.
1. Loosen the nut.
2. Use the SST (09568-34000)
Tightening torque:

196.1 ~ 274.5 N.m (6.0 ~ 7.2 kgf.m, 144.6 ~ 202.5 lb-ft)

Fig 8: Identifying Knuckle Lower Arm
Courtesy of KIA MOTORS AMERICA, INC.

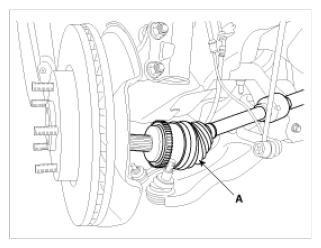

Disconnect the driveshaft (A) from the front hub assembly.

Fig 9: Identifying Driveshaft
Courtesy of KIA MOTORS AMERICA, INC.

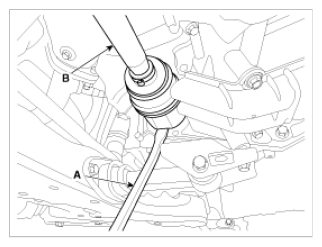

Insert a pry bar (A) between the transaxle case and joint case, and separate the drive shaft (B) from the transaxle case.

Fig 10: Separating Drive Shaft Using Pry Bar
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
CAUTION:
- Use a pry bar (A) being careful not to damage the transaxle and joint.
- Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
