Component Location

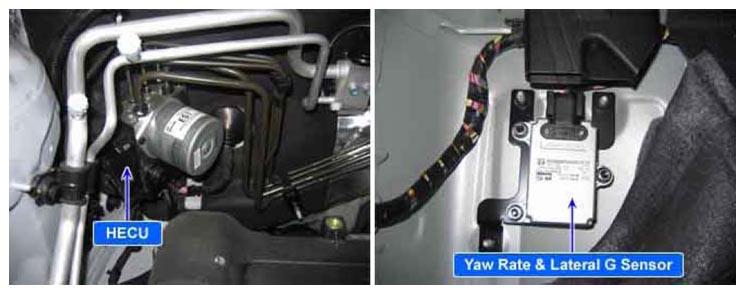

Fig 1: Identifying HECU, Yaw Rate And Lateral Sensor
G08324269Courtesy of KIA MOTORS AMERICA, INC.
