SRS Control Module Connector End View (M12)

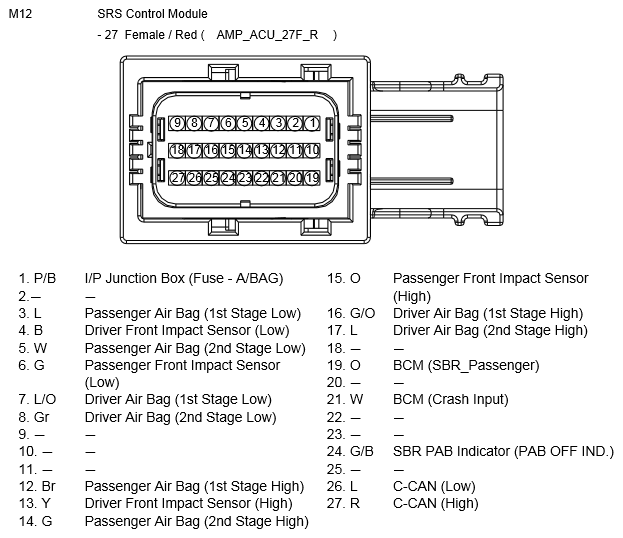

Fig 1: SRS Control Module Connector End View (M12)

G10812745

Courtesy of KIA MOTORS AMERICA, INC.
