Component Location

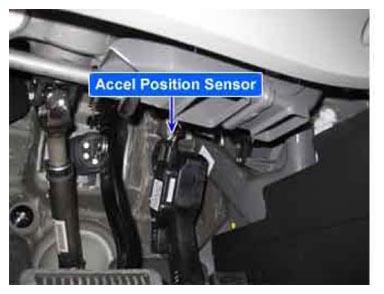

Fig 1: Identifying Accel Position Sensor
G07386857Courtesy of KIA MOTORS AMERICA, INC.
