Section 65 (HEV Control System Diagnosis - Optima HEV)
>>
DTC P1679: Immobilizer-EMS Data Fail-Data frame CS Message error
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

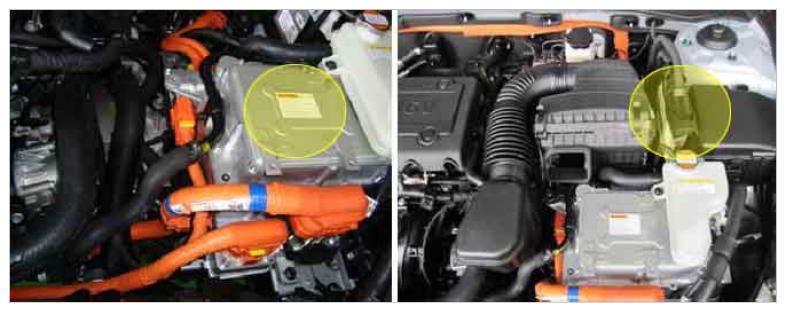

Fig 1: Identifying HCU And Engine ECU
Courtesy of KIA MOTORS AMERICA, INC.
