Schematic Diagrams

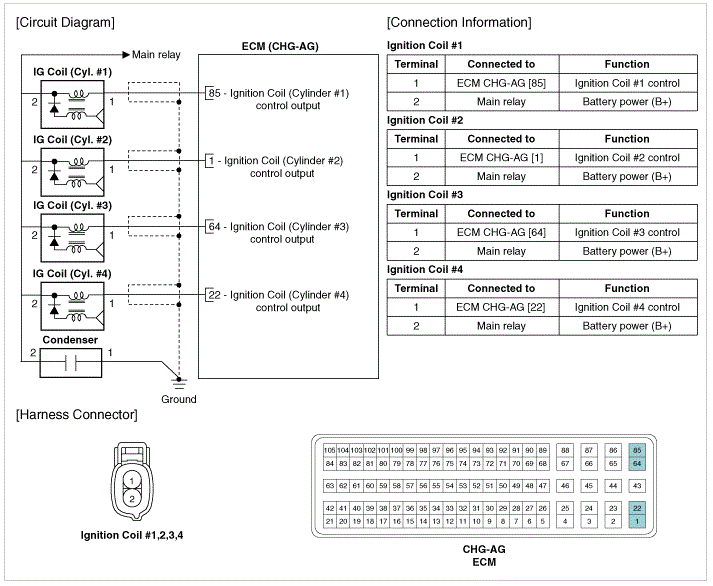

Fig 1: Ignition Coil Wiring Schematic

G00547676

Courtesy of KIA MOTORS AMERICA, INC.
