Schematic Diagrams

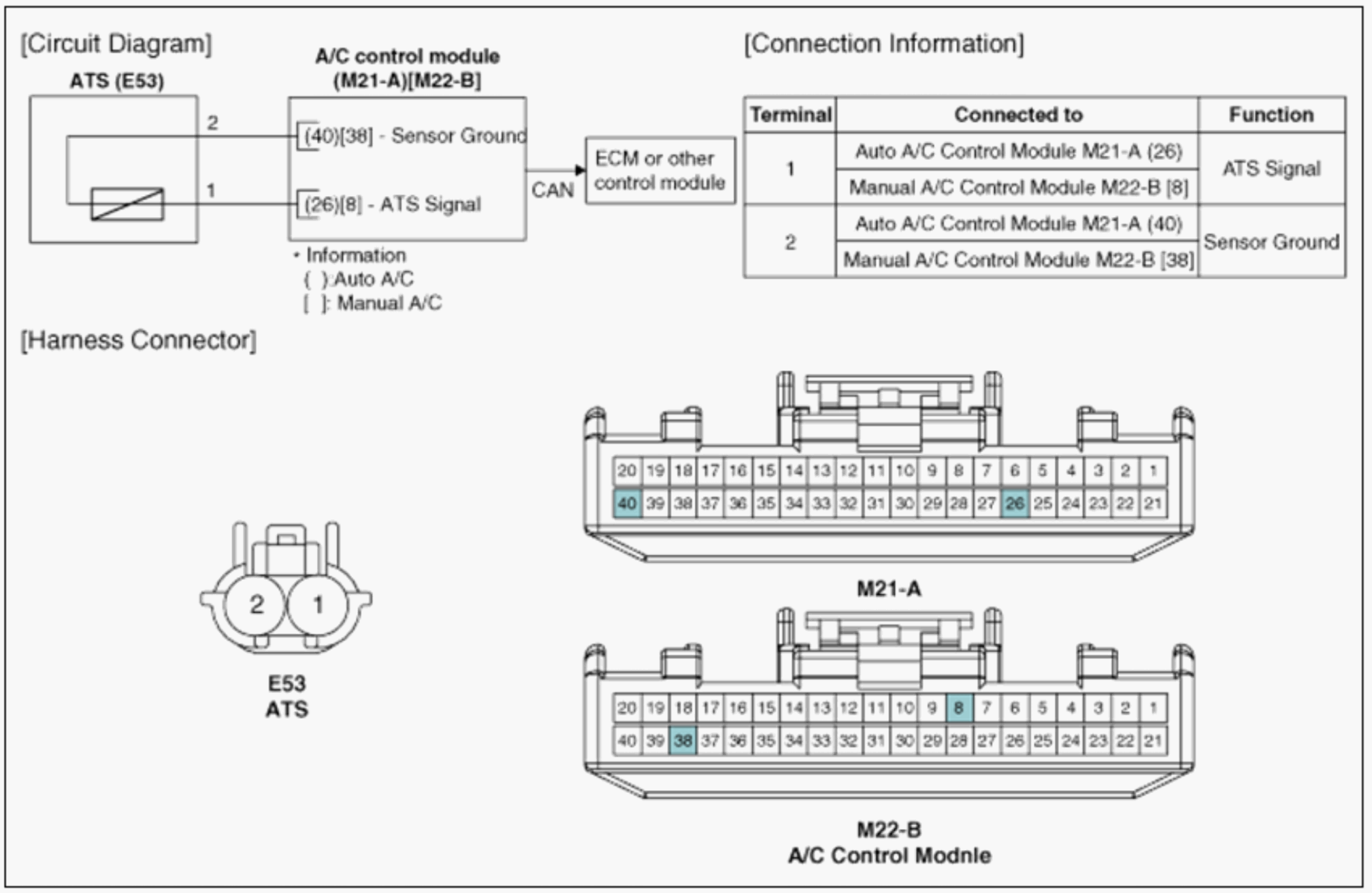

Fig 1: Identifying IATS And A/C Control Module Circuit Diagram

G00535119

Courtesy of KIA MOTORS AMERICA, INC.
