Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

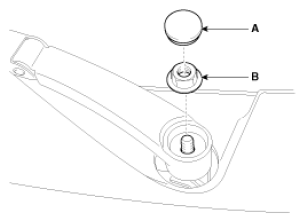

Loosen the windshield wiper arm nut (B) after removing a wiper cap (A).

Fig 1: Identifying Wiper Cap And Windshield Wiper Arm Nut
Courtesy of KIA MOTORS AMERICA, INC.

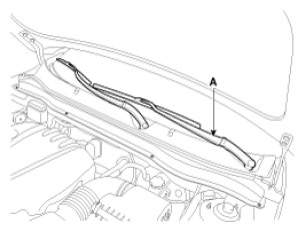

Remove the windshield wiper arm and blade (A).

Fig 2: Identifying Windshield Wiper Arm And Blade
Courtesy of KIA MOTORS AMERICA, INC.
If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm.

Fig 3: Pulling Up Wiper Blade Fixing Clip
Courtesy of KIA MOTORS AMERICA, INC.

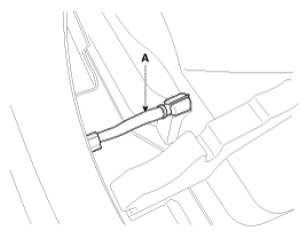

Disconnect the washer hose (A) connected to cowl top cover.

Fig 4: Identifying Washer Hose
Courtesy of KIA MOTORS AMERICA, INC.

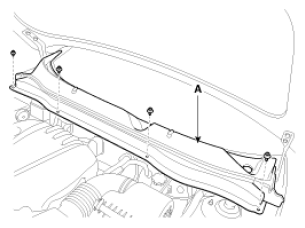

Remove the weather strip and the cowl top cover (A) after removing rivets.

Fig 5: Identifying Cowl Top Cover
Courtesy of KIA MOTORS AMERICA, INC.

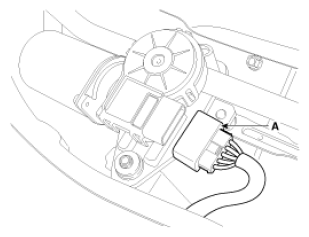

Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.

Fig 6: Identifying Wiper Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

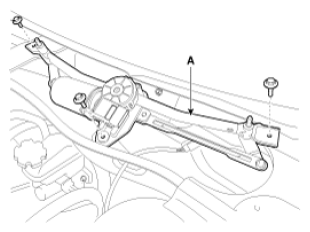

Remove the windshield wiper motor and linkage assembly (A) after removing 3 bolts.

Fig 7: Identifying Windshield Wiper Motor And Linkage Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

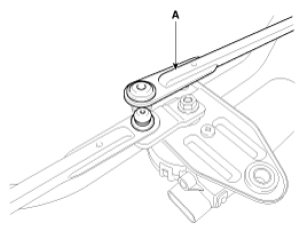

Hold the wiper motor crank arm and remove the upper linkage (A) from the wiper motor crank arm.

Fig 8: Identifying Wiper Motor Crank Arm Upper Linkage
Courtesy of KIA MOTORS AMERICA, INC.

WARNING: Before removing the wiper motor and linkage assembly, make sure that the linkage is stopped at auto stop position.

Fig 9: Identifying Wiper Motor And Linkage Assembly Stopped Position
Courtesy of KIA MOTORS AMERICA, INC.

To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.
Be careful not to bend the linkage.

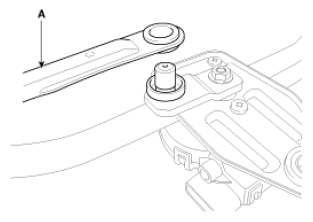

Remove the lower linkage (A) from the wiper motor crank arm.

Fig 10: Identifying Wiper Motor Crank Arm Lower Linkage
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.
Be careful not to bend the linkage.
Remove the crank arm (A) after loosening a nut.

Fig 11: Identifying Crank Arm And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiper motor bracket (A) after loosening the bolts.

Fig 12: Identifying Wiper Motor Bracket And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
