Speed Operation Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the connector (A) from the wiper motor.

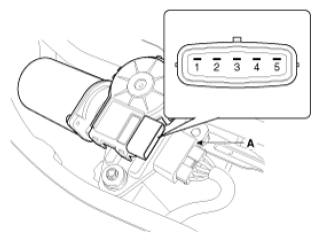

    Fig 1: Identifying Wiper Motor Connector Terminals
    G08309458Courtesy of KIA MOTORS AMERICA, INC.
    NO Description
    1 GND
    2 Parking
    3 Battery (-)
    4 LOW
    5 HI
  2. Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
  3. Check that the motor operates at low or high speed as below table.

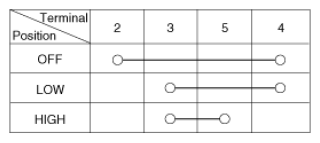

    Fig 2: Checking Motor Operating Positions
    G08309459Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a good cleaner or mild detergent, and rinse thoroughly with clean water.
