Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When servicing the washer pump, be careful not to damage the washer pump seal.
Do not operate the washer pump before filling the washer reservoir.

Failure to do so could result in premature pump failure.

Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer to the "FRONT BUMPER ")
Remove the washer hose and disconnect the washer motor connector (A) and level sensor connector (B).

Fig 1: Identifying Washer Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

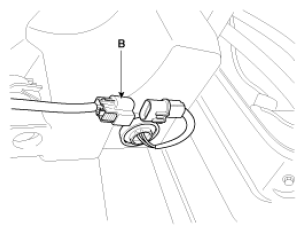

Fig 2: Identifying Level Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the washer motor (A).

Fig 3: Removing Washer Motor
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Washer fluid may flow out of the opening of reservoir.
Remove the washer reservoir after removing 2 bolts (A).

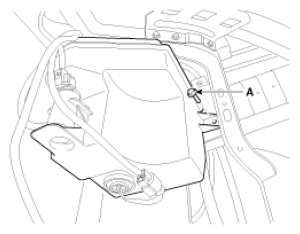

Fig 4: Identifying Washer Reservoir Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Identifying Washer Reservoir Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
