Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.

If they are abnormal, replace the washer motor.

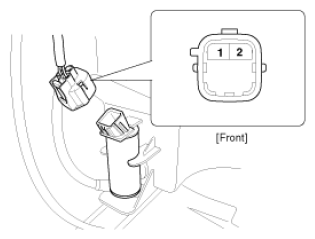

Fig 1: Identifying Washer Motor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

NO	Description
1	GND
2	Washer (+)

Fig 2: Checking Washer Motor Operation

Courtesy of KIA MOTORS AMERICA, INC.
