Section 11 (Electric Power Steering - Optima HEV)
>>
Components and Components Location
>>
Components
>>
MDPS Circuit Diagram
MDPS Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

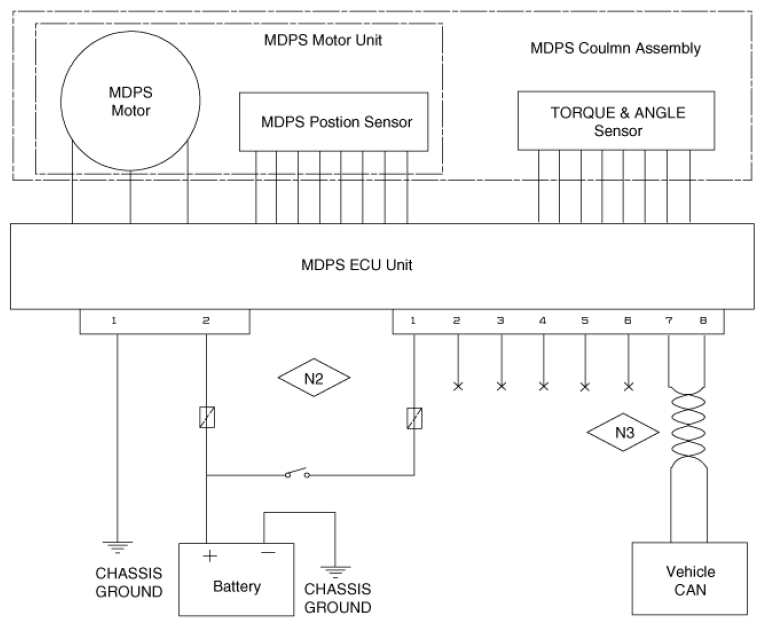

Fig 1: MDPS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
