Signal Waveform & Data

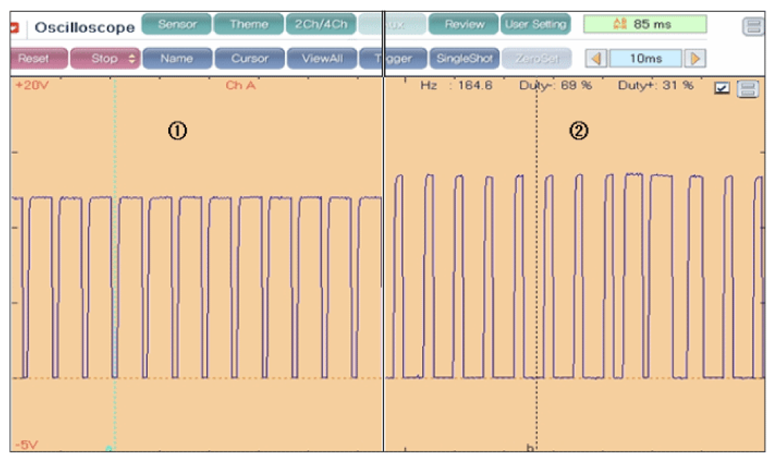

Fig 1: Signal Waveform Of Alternator (1 Of 2)
G07386752Courtesy of KIA MOTORS AMERICA, INC.

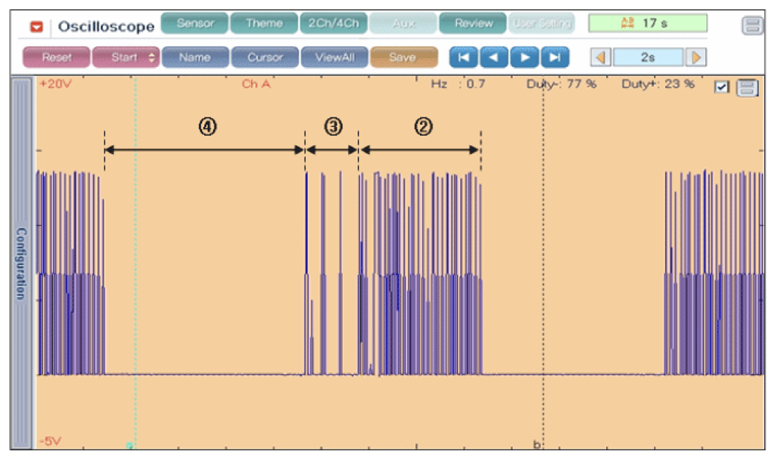

Fig 2: Signal Waveform Of Alternator (2 Of 2)
G07386753Courtesy of KIA MOTORS AMERICA, INC.
  1. Normal waveform with IG ON.
  2. Normal waveform with Idle and no electrical load.
  3. Normal waveform with Idle and part electrical load.
  4. Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc).
