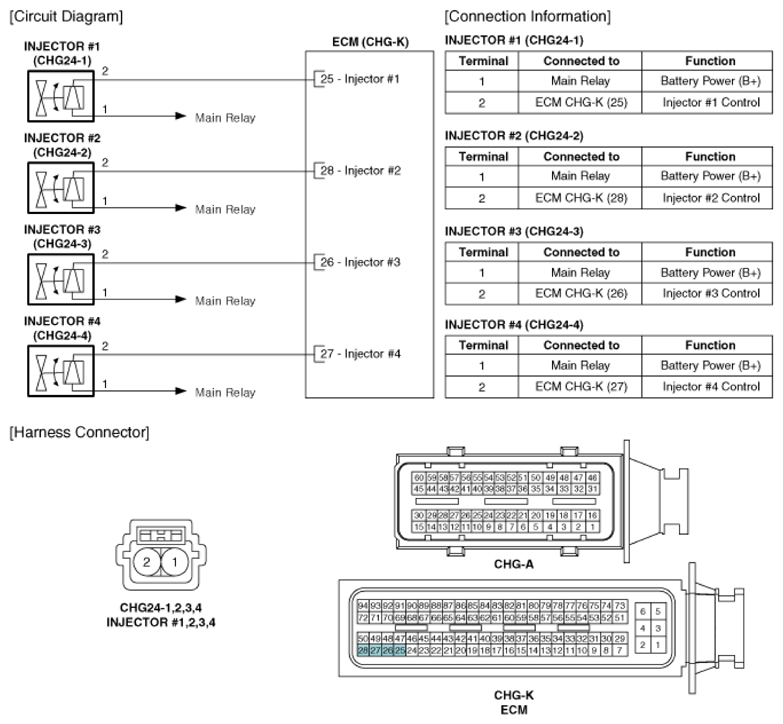

Home >> Kia >> 2014 >> Optima Hybrid EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Optima HEV >> Injector >> Schematic Diagrams >> Circuit Diagram
