Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

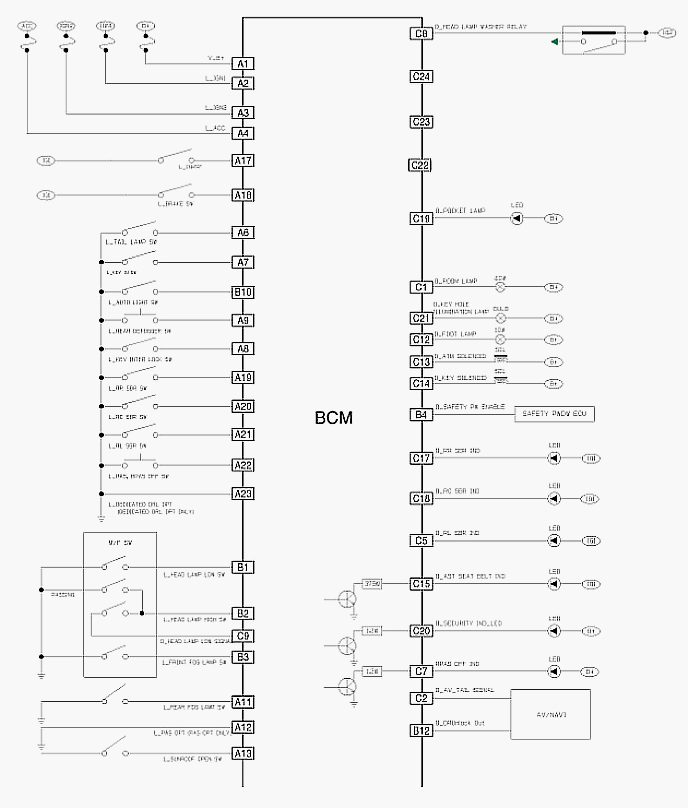

Fig 1: BCM Connector Terminals - Circuit Diagram (1 Of 2)
G00548663Courtesy of KIA MOTORS AMERICA, INC.

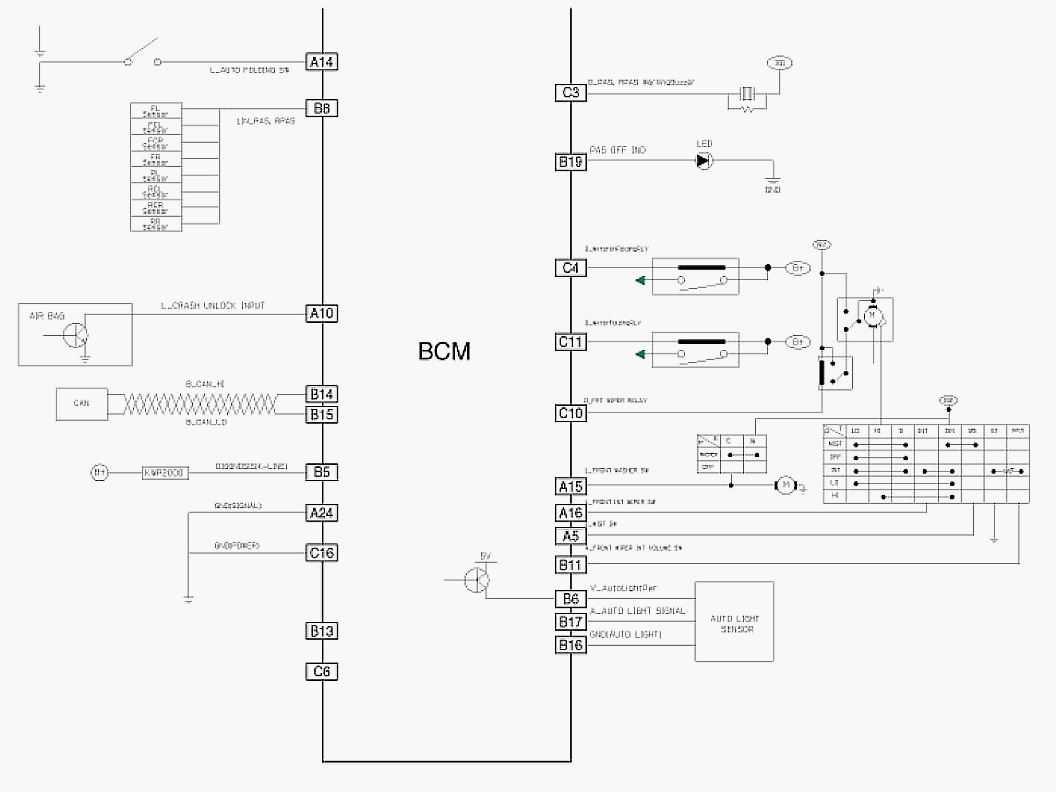

Fig 2: BCM Connector Terminals - Circuit Diagram (2 Of 2)
G00548664Courtesy of KIA MOTORS AMERICA, INC.
