WARNING: This page is about a different car, the 2013 Hyundai Tucson and 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

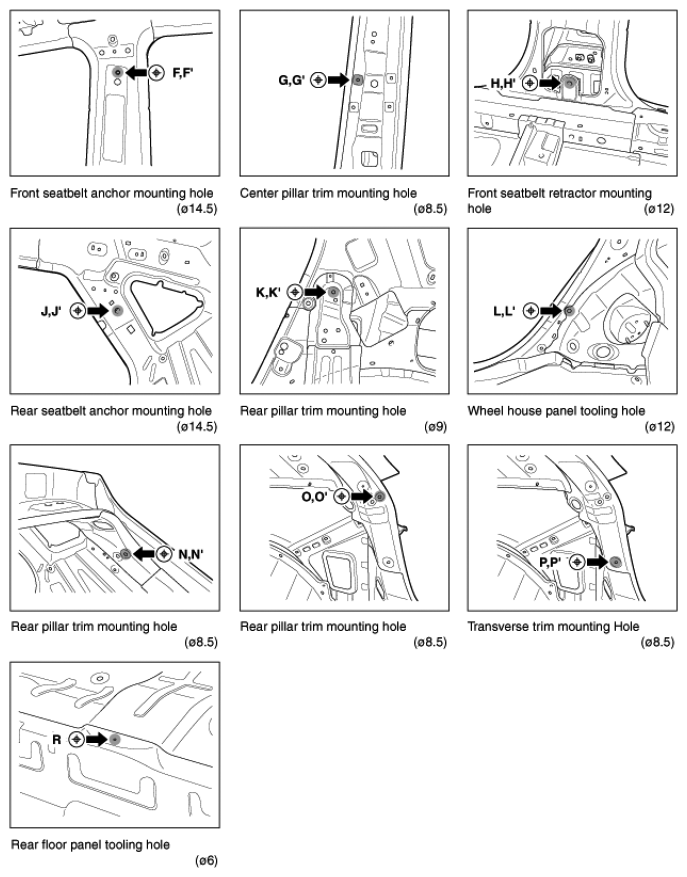

Fig 1: Identifying Measurement Points - Interior D (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

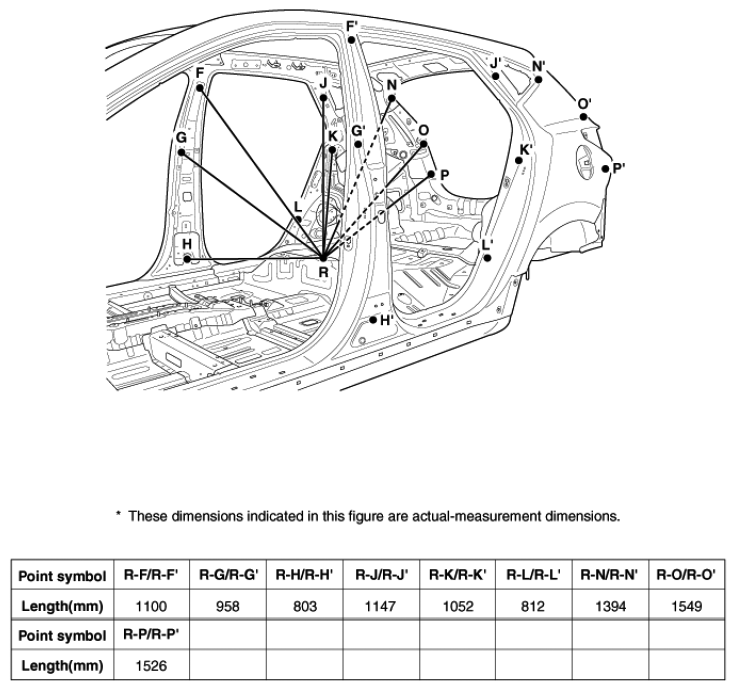

Fig 2: Identifying Measurement Points - Interior D (2 Of 2)
