Antenna Status Check

WARNING: This page is about a different car, the 2015 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

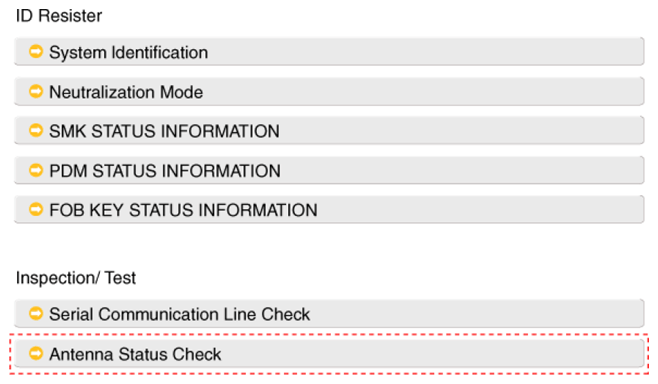

    Fig 1: Scantool Display - Antenna Status Check
    G07380653Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

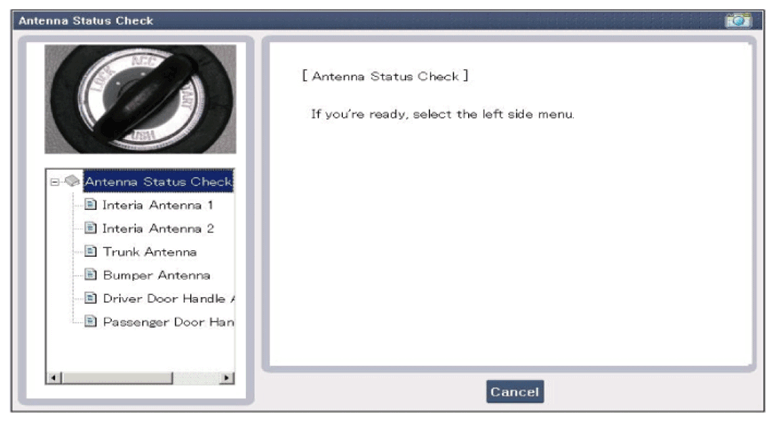

    Fig 2: Scantool Display - Antenna Status Check Screen
    G07380654Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

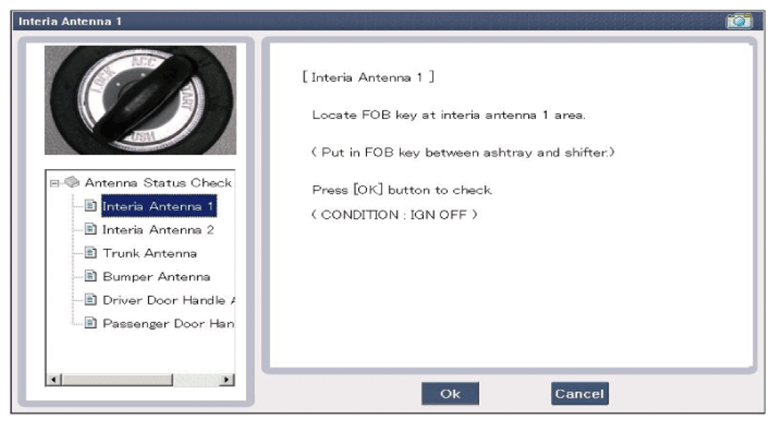

    Fig 3: Scantool Display - Interia Antenna 1
    G07380655Courtesy of KIA MOTORS AMERICA, INC.

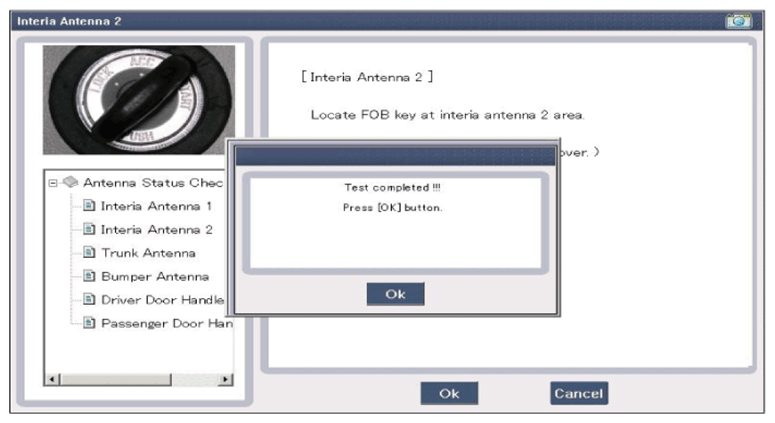

    Fig 4: Scantool Display - Interia Antenna 2 Test Completed
    G07380656Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
  1. INTERIOR Antenna 1
  2. INTERIOR Antenna 2
  3. Trunk antenna
  4. BUMPER/Antenna
  5. DRV_DR Antenna
  6. AST_DR Antenna
