Clock Spring (W/O Steering Wheel Heater) Connector End View (M01-R)

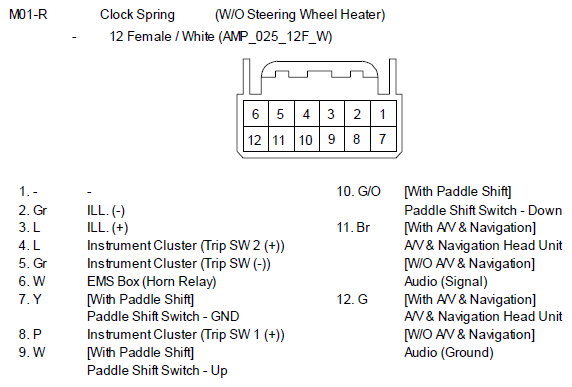

Fig 1: Clock Spring (W/O Steering Wheel Heater) Connector End View (M01-R)

G10800797

Courtesy of KIA MOTORS AMERICA, INC.
