Smart Key Control Module Connector End View (M13-C)

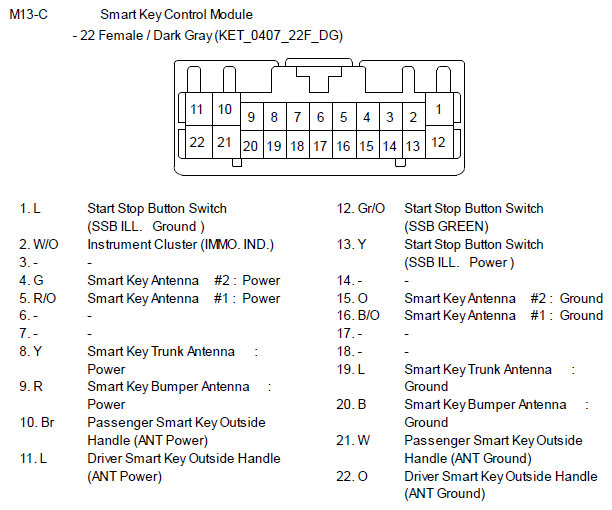

Fig 1: Smart Key Control Module Connector End View (M13-C)

G10800484

Courtesy of KIA MOTORS AMERICA, INC.
