Components And Components Location: Component

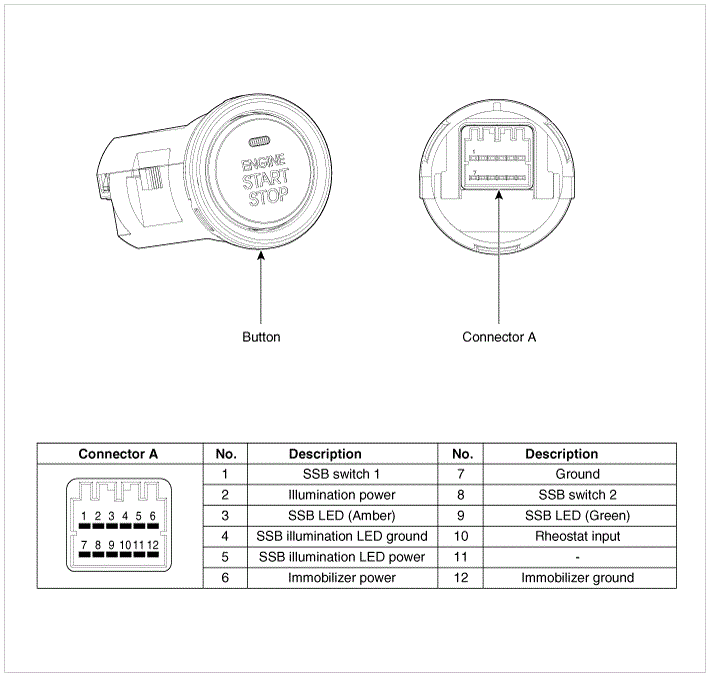

Fig 1: Start/Stop Button Connector Terminal Identification

G00549563

Courtesy of KIA MOTORS AMERICA, INC.
