Smart Key Control Module Connector End View (M13-B)

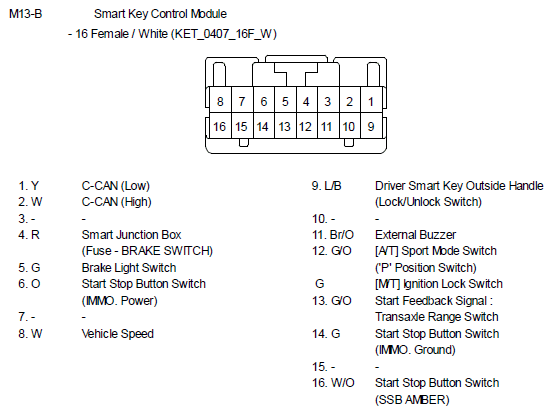

Fig 1: Smart Key Control Module Connector End View (M13-B)

G10800815

Courtesy of KIA MOTORS AMERICA, INC.
