Charging System: Alternator

Item Specification
Rated voltage 13.5V, 110A
Speed in use 1, 000 ~ 18, 000 rpm
Voltage regulator IC Regulator built-in type
Regulator Setting Voltage External mode Refer to graph below
Internal mode 14.55 ± 0.3V
Temperature Gradient External mode 0 ± 3 mV/°C?
Internal mode -3.5 ± 2mV/°C

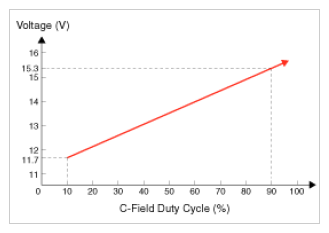

Fig 1: Alternator Voltage Graph
G09746815Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Alternator Output Current Versus RPM Graph
G09746816Courtesy of KIA MOTORS AMERICA, INC.
