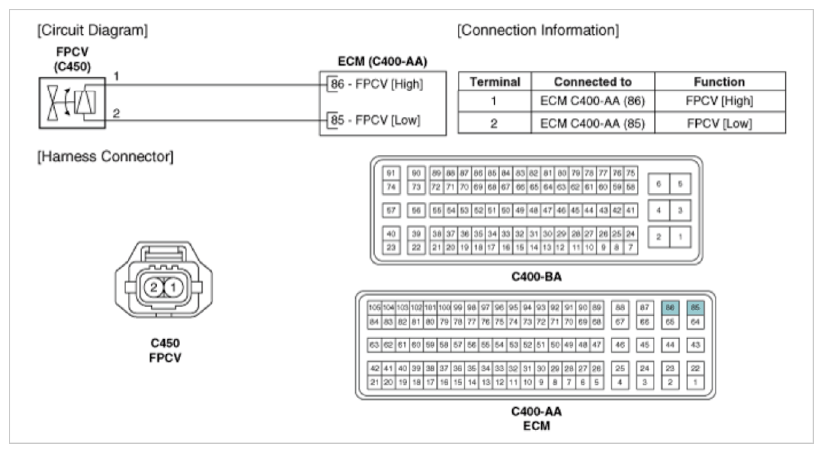

Home >> Kia >> 2014 >> Forte5 SX, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram >> (A/T)
