Testing And Repairs

Do not use wires or harnesses with broken insulation.
Replace them or repair them by wrapping the break with electrical tape.
After installing parts, make sure that no wires are pinched under them.
When using electrical test equipment, follow the manufacturer's instructions and those described in this service information .
If possible, insert the remover tool from the wire side (except waterproof connector).

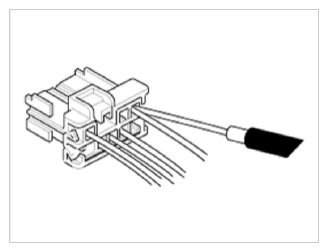

Fig 1: Inserting Remover Tool From Wire Side (Except Waterproof Connector)
Courtesy of KIA MOTORS AMERICA, INC.
Use a remover tool with a tapered tip.

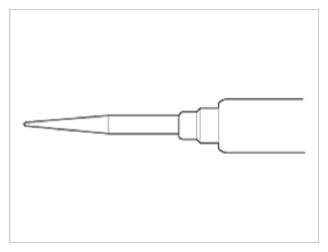

Fig 2: Identifying Remover Tool Tapered Tip
Courtesy of KIA MOTORS AMERICA, INC.

Refer to the user's guide in the wiring repair kit II (Pub. No.: 0K000 003 A05)
