Home >> Kia >> 2014 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Engine & Transaxle Assembly - 1.6L >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

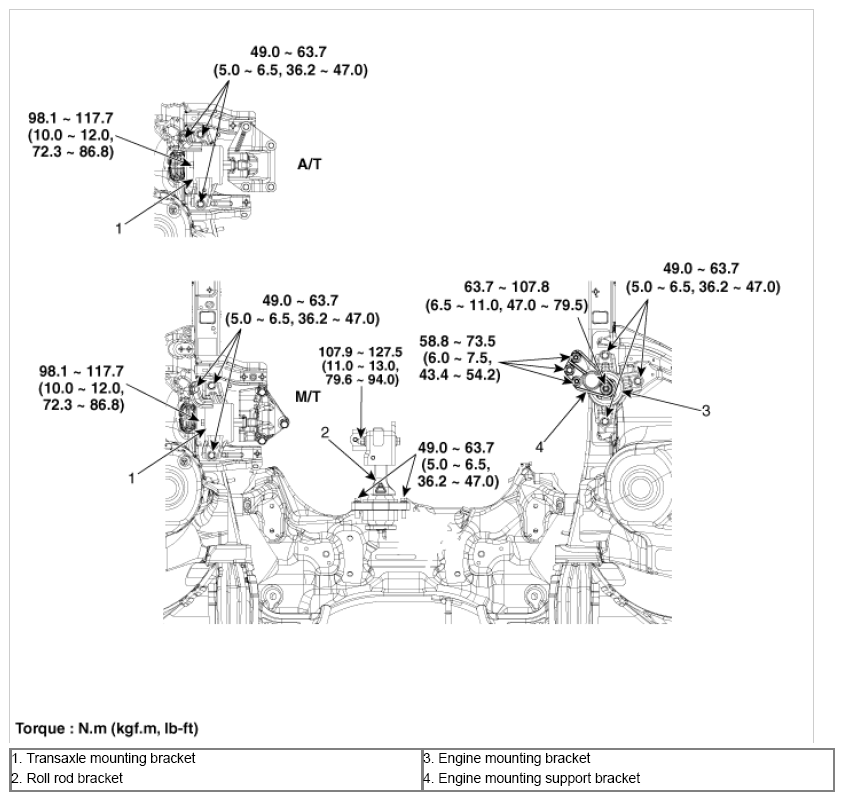

Fig 1: Transaxle Mounting Bracket And Bolts With Torque Specification

G09746463

Courtesy of KIA MOTORS AMERICA, INC.
