Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Disconnect the starter cable (B) from the B terminal on the solenoid then disconnect the connector (A) from the S terminal.

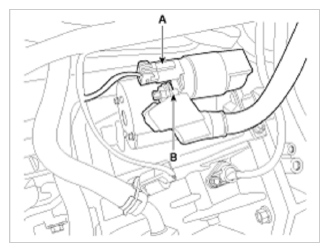

    Fig 1: Identifying Starter Cable And Connector
    G09746868Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the 2 bolts holding the starter, then remove the starter (A).

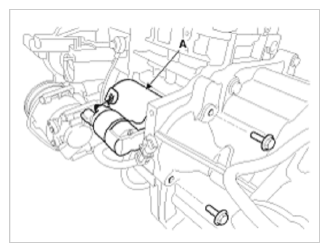

    Fig 2: Identifying Starter Bolts
    G09746869Courtesy of KIA MOTORS AMERICA, INC.
