Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.

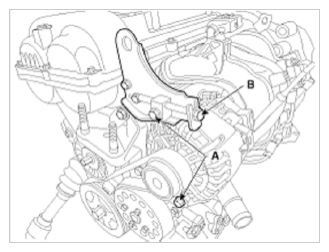

Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.

Fig 1: Identifying Alternator Mounting Bolts & Adjusting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

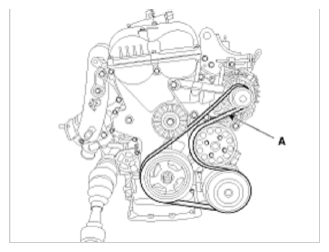

Remove the drive belt (A).

Fig 2: Identifying Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

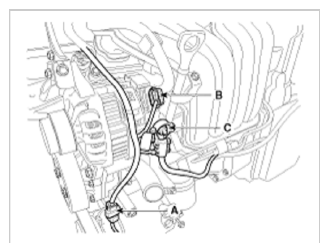

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).

Fig 3: Identifying Air Compressor Connector & Alternator Connector
Courtesy of KIA MOTORS AMERICA, INC.

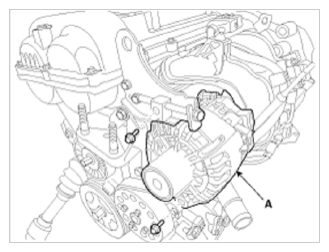

Remove the alternator (A).

Fig 4: Identifying Alternator
Courtesy of KIA MOTORS AMERICA, INC.
