Special Service Tools

Tool (Number and Name) Illustration Use
09200-3N000
Engine support fixture (Beam)
G09745741
 Removal and installation of the transaxle.
Use this adapter (SST No.: 09200-4X000) with the supporter (SST No.: 09200-2S000).
(1) Permit operating with 09200-38001.
09200-2S000
Engine support fixture (Supporter)
G09745742
 Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000) and adapter (SST No.: 09200-4X000).
09200-4X000
Engine support fixture (Adapter)
G09745743
 Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000).
09452-26100
Oil seal installer
G09745744
 Installation of transaxle case oil seal.
[Using with handle (SST No. 09231-H1100)]
09231-H1100
Bar
G09745745
 Installation of transaxle case oil seal.
[Using with oil seal installer (SST No.: 09452-26100)]
09480-A3800
Inhibitor switch guide pin
G09745746

(1) Engine support fixture special tool assembly drawing

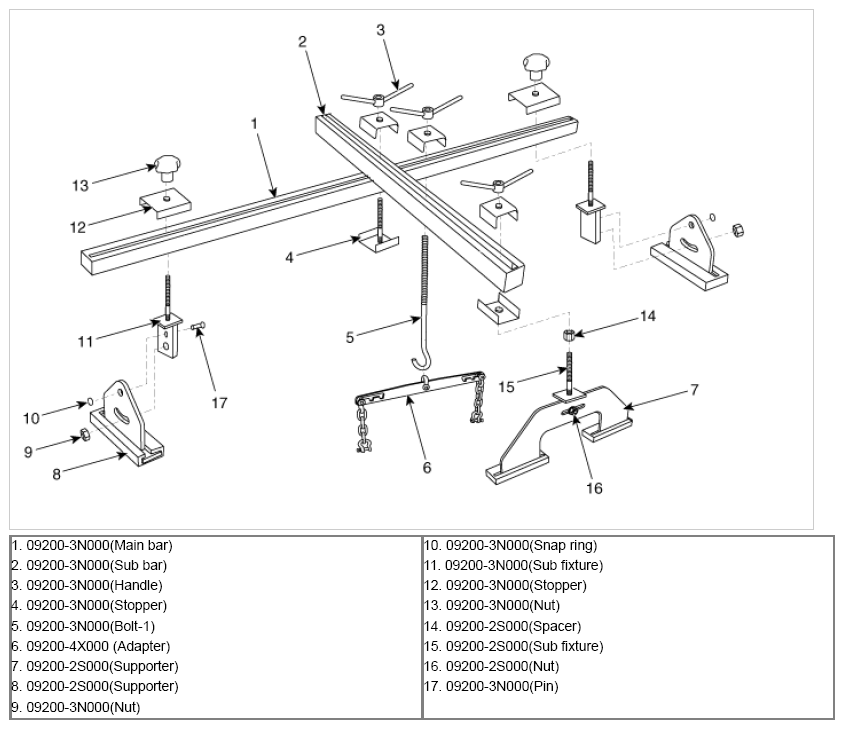

Fig 1: Exploded View Of Engine Support Fixture Special Tool Assembly Drawing
G09745747Courtesy of KIA MOTORS AMERICA, INC.
