Repair Procedures: Inspection

  1. Disconnect the hood switch connector (A).

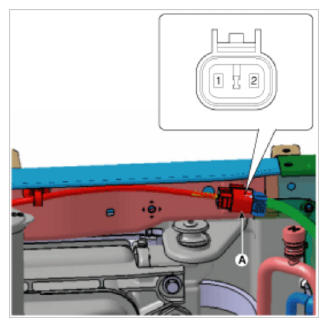

    Fig 1: Hood Switch Connector End View
    G09745679Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals
    Fig 2: Checking Continuity Between Hood Switch Terminals
    G09745680Courtesy of KIA MOTORS AMERICA, INC.
