Idle Stop & Go (ISG) System - 1.8L
>>
Components And Components Location
>>
Components Location
Components Location

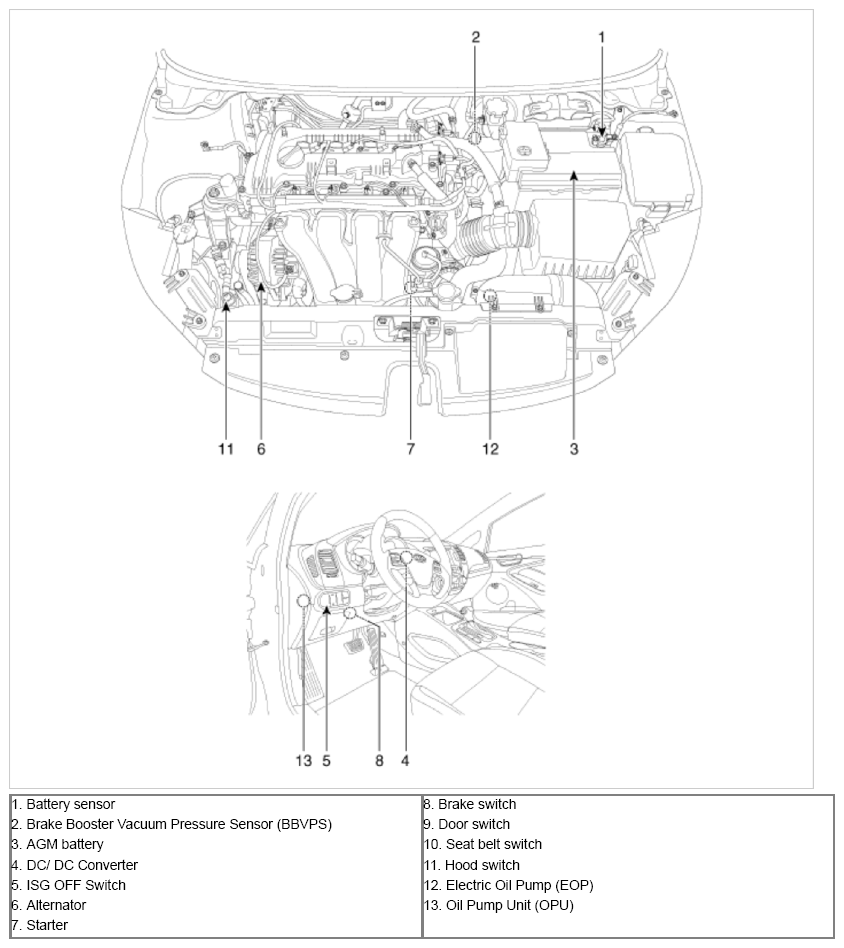

Fig 1: ISG (Idle Stop & Go) System Components Location (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

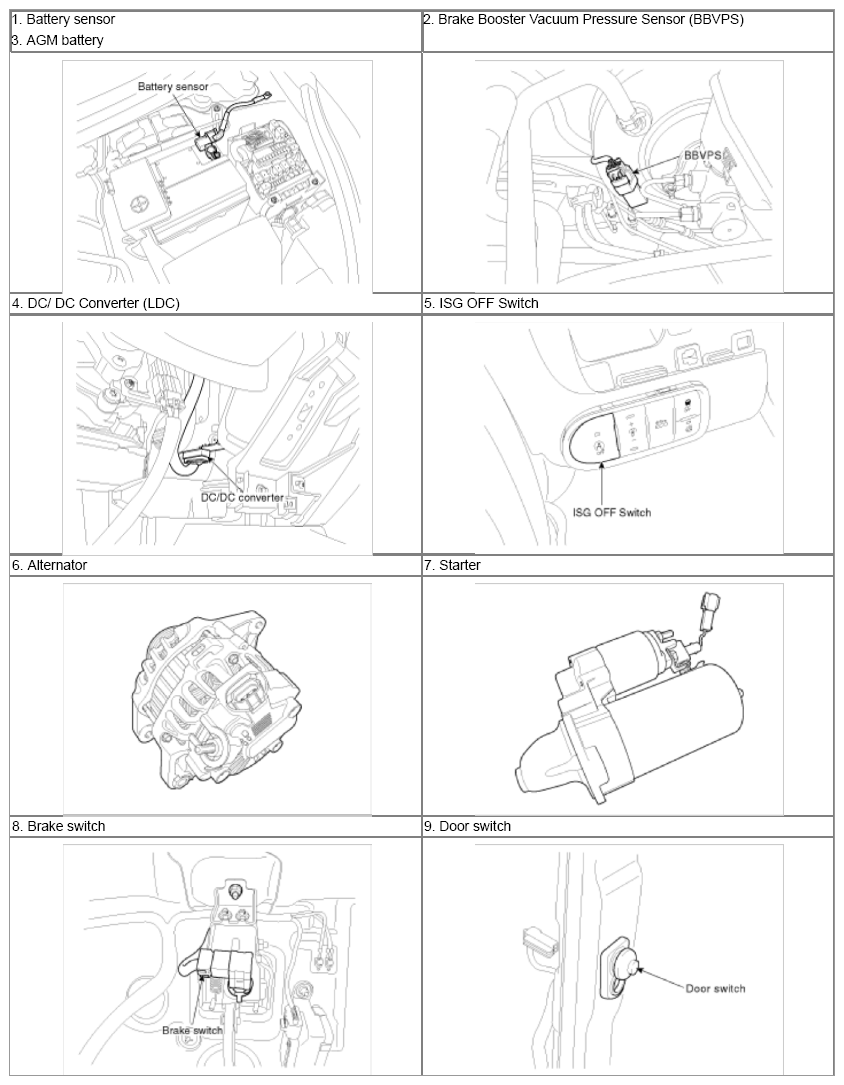

Fig 2: ISG (Idle Stop & Go) System Components Location (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

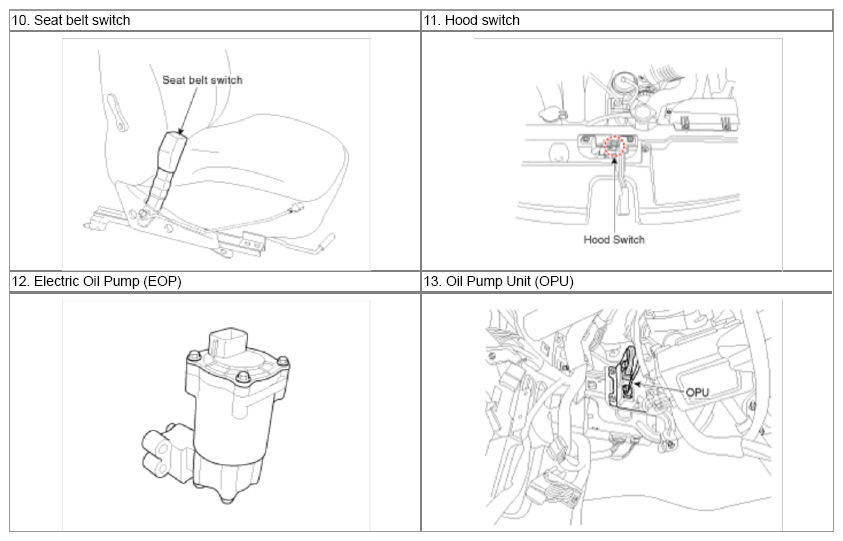

Fig 3: ISG (Idle Stop & Go) System Components Location (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
