Repair Procedures: Removal

Disconnect the battery terminals (A).
1. Tightening torque
  (+) terminal:

  7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

  (-) terminal:

  4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)

  Fig 1: Battery Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct and air cleaner assembly. (Refer to "AIR CLEANER ")
Remove the battery insulation pad.
Remove the battery (A) after removing the mounting bracket.
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

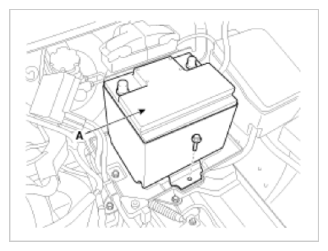

Fig 2: Battery
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ECM.
(Refer to "ENGINE CONTROL MODULE (ECM) ")
Remove the battery tray (A) after removing the bolts.

Fig 3: Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
