Kia
>>
2014
>>
Forte LX, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Idle Stop & Go (ISG) System - 1.8L
>>
AGM Battery
>>
Repair Procedures
>>
Inspection
>>
Battery Diagnostic Flow
Battery Diagnostic Flow

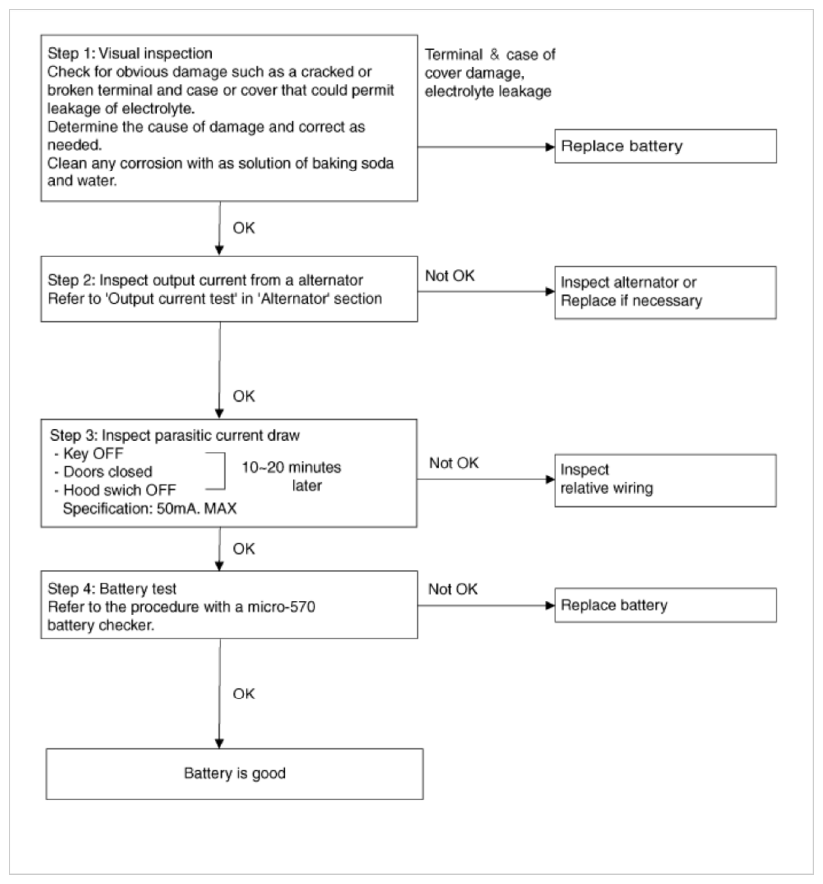

Fig 1: Battery Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
