Circuit Diagram: (M/T)

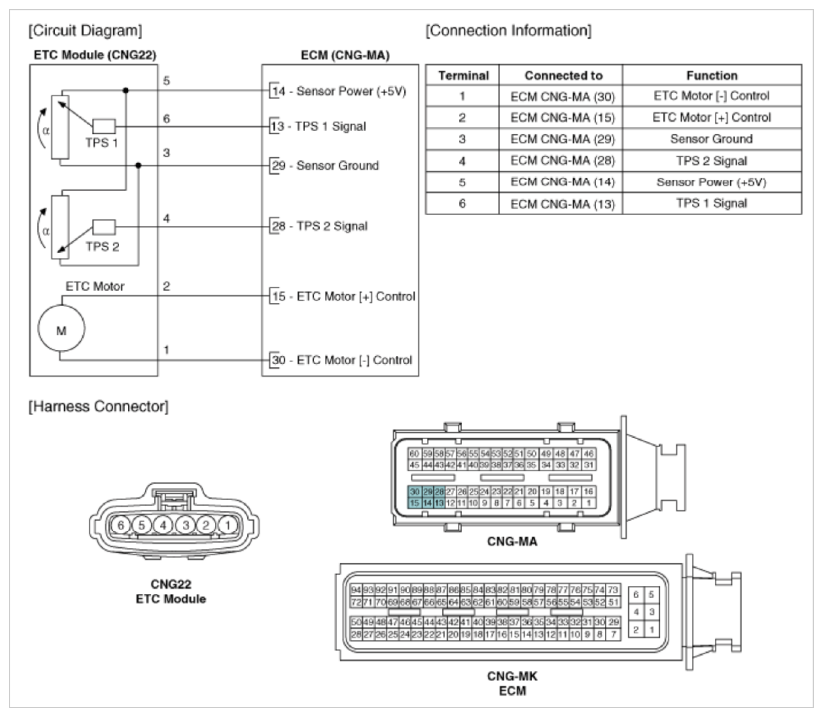

Fig 1: Electronic Throttle Control (ETC) Module - Circuit Diagram (M/T)
G09748728Courtesy of KIA MOTORS AMERICA, INC.
