Components And Components Location: Components

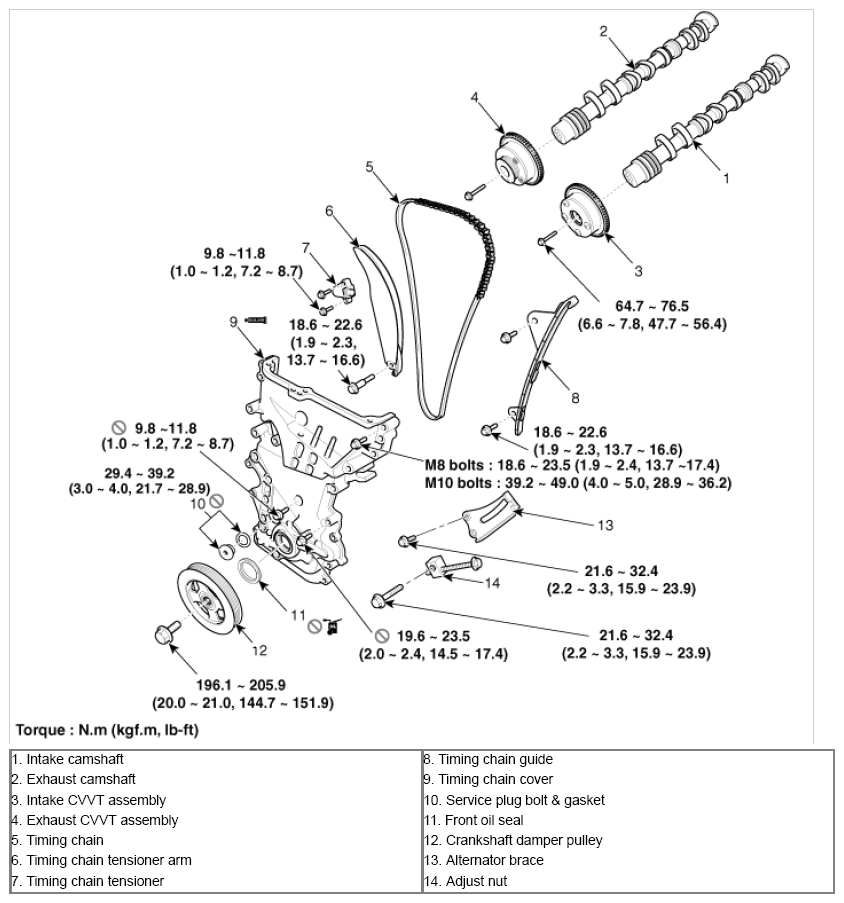

Fig 1: Exploded View Of Timing System Components With Torque Specification

G09745239

Courtesy of KIA MOTORS AMERICA, INC.
