Components And Components Location: Components

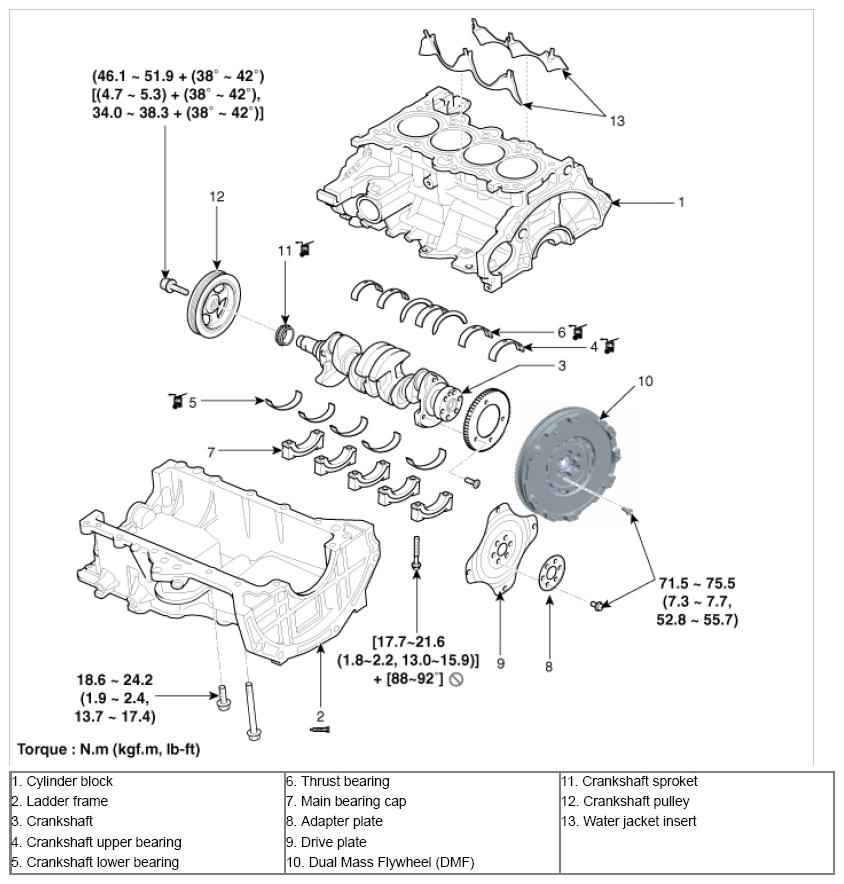

Fig 1: Exploded View Of Cylinder Block Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

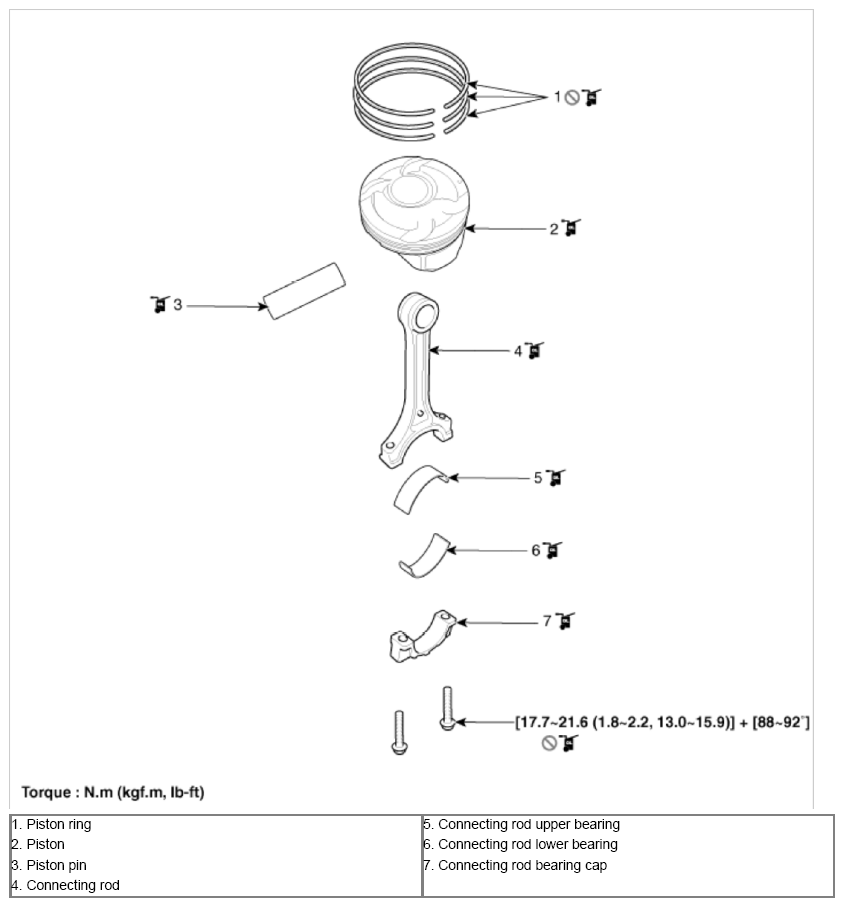

Fig 2: Exploded View Of Piston Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
