Passenger Power Window Switch

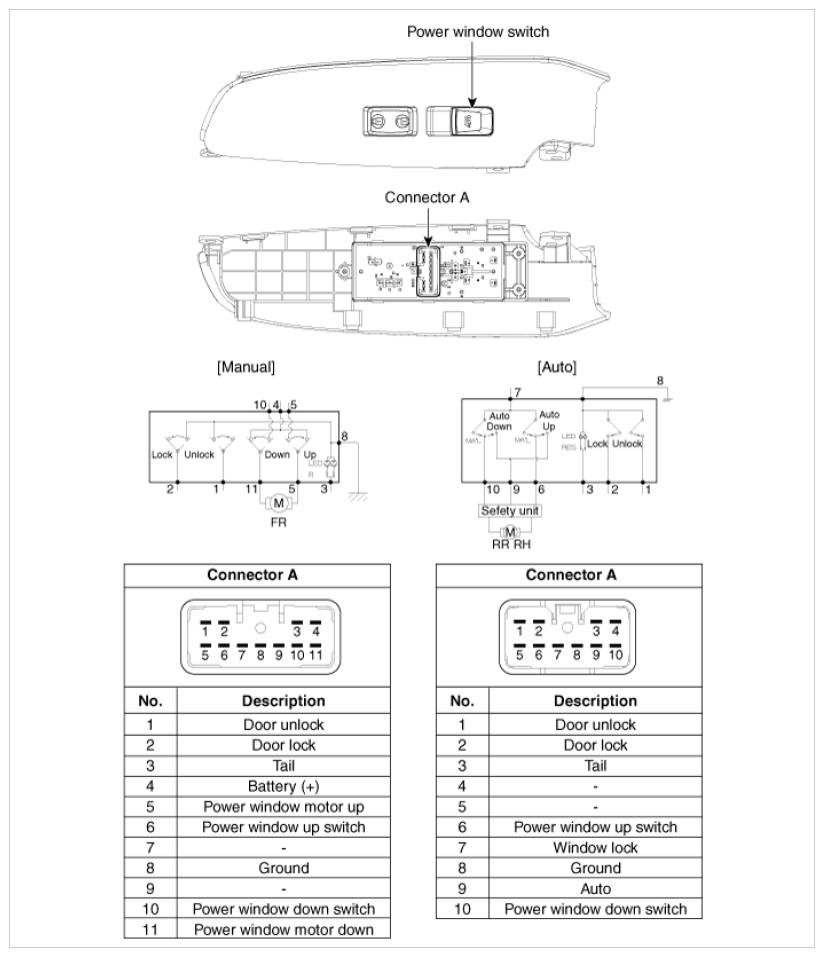

Fig 1: Passenger Power Window Switch Connector Terminal Identification

G09744404

Courtesy of KIA MOTORS AMERICA, INC.
