Components and Components Location: Components

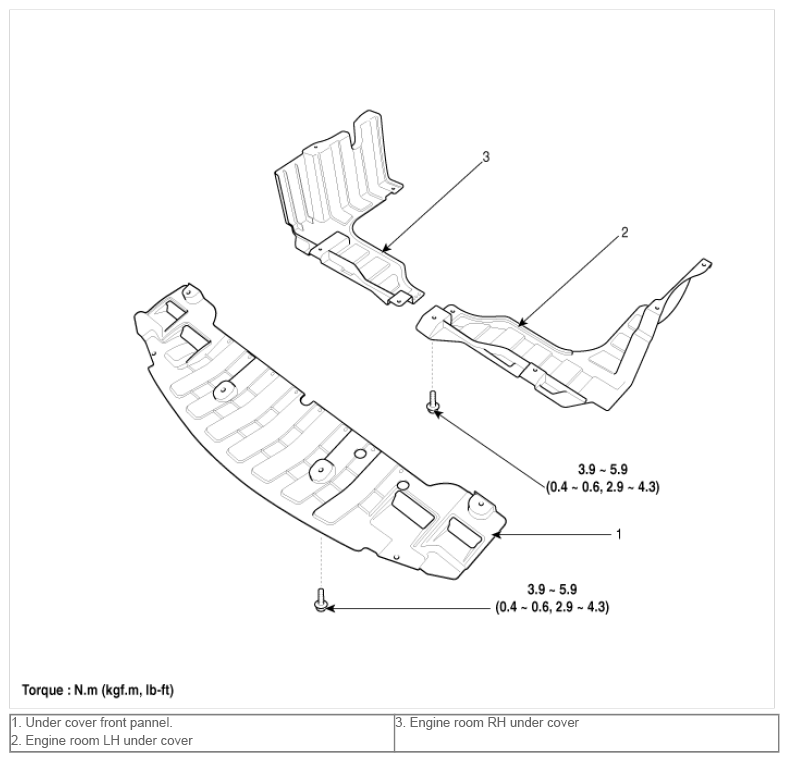

Fig 1: Engine Room Under Covers And Front Panel With Torque Specifications

G09742464

Courtesy of KIA MOTORS AMERICA, INC.
