Special Service Tools
| Tool (Number and Name) | Illustration | Use | ||
|---|---|---|---|---|

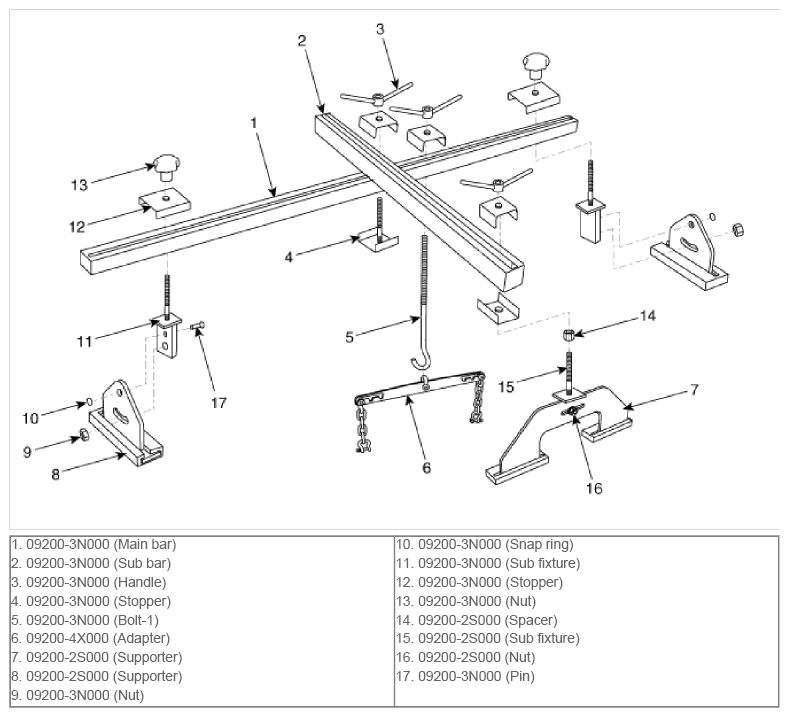

| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this adapter (SST No.: 09200-4X000) with the supporter (SST No.: 09200-2S000). (1) Permit operating with 09200-38001. |
|||
| 09200-2S000 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the adapter (SST No.: 09200-4X000). |
|||
| 09200-4X000 Engine support fixture (Adapter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000). |
|||
| 09453-3L241 Oil seal installer |
Installation of transaxle case oil seal. [Using with handle (SST No. 09231-H1100)] |
|||
| 09231-H1100 Bar |
Installation of transaxle case oil seal. [Using with oil seal installer (SST No.: 09453-3L241)] |
|||
| 09480-A3800 Inhibitor switch guide pin |
||||
|
||||
