ASP Calibration

  1. Select "Steering Angle Sensor".
  2. Proceed with the test according to the screen introductions.

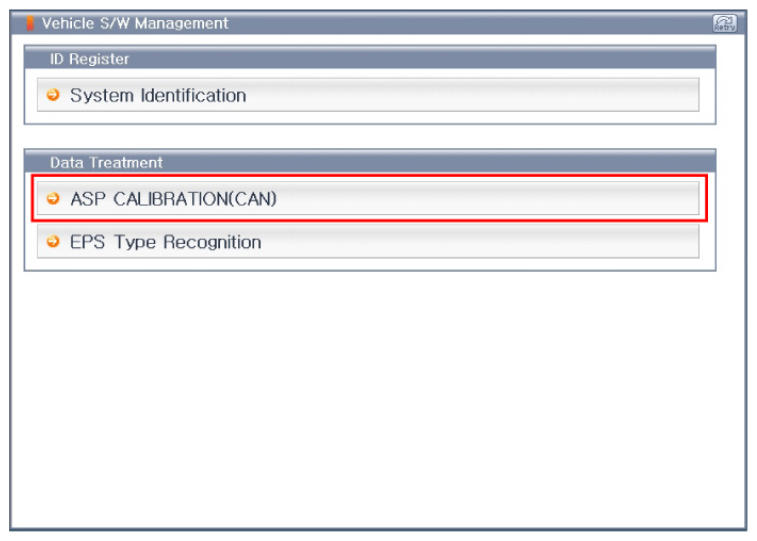

    Fig 1: Scantool Display - ASP Calibration
    G09743605Courtesy of KIA MOTORS AMERICA, INC.

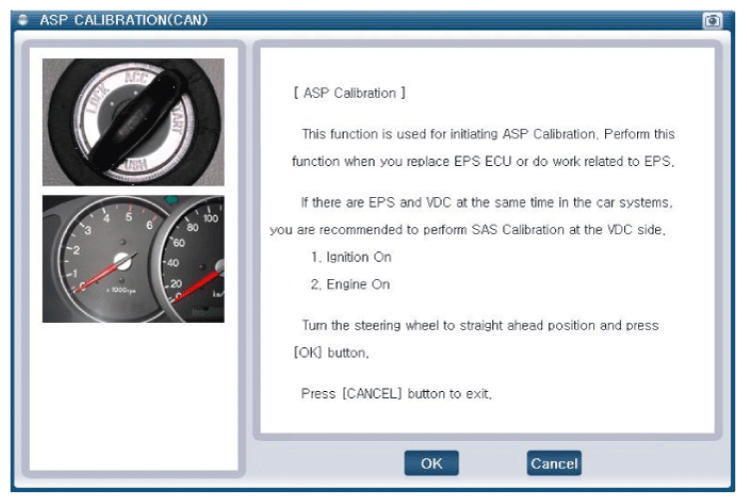

    Fig 2: Scantool Display - ASP Calibration Selection Screen
    G09743606Courtesy of KIA MOTORS AMERICA, INC.
