Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the driver side shower duct after loosening the screw.
  4. Disconnect the PTC heater connector (A).

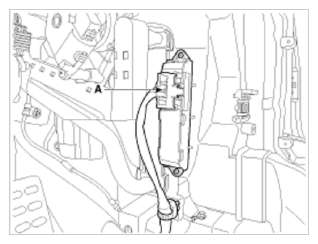

    Fig 1: PTC Heater Connector
    G09745176Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the PTC heater core (A) after loosening the PTC heater mounting screws.

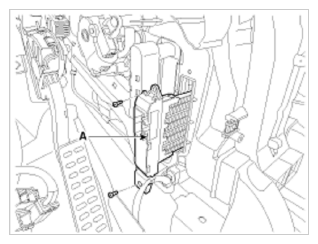

    Fig 2: PTC Heater Core
    G09745177Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
