Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.
    1. Loosen the alternator mounting bolts (A).
    2. Loosen the tension by turning the tension adjusting bolt (B) counterclockwise.
    3. Remove the drive belt (C).

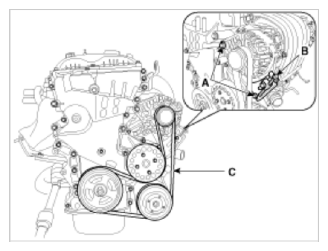

      Fig 1: Identifying Tension Adjusting Bolt, Alternator Mounting Bolts & Drive Belt
      G09745240Courtesy of KIA MOTORS AMERICA, INC.
