Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the fuse box cover.
  3. Remove the starter relay (A).

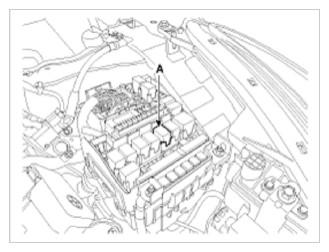

    Fig 1: Identifying Starter Relay
    G09745575Courtesy of KIA MOTORS AMERICA, INC.
  4. Using an ohmmeter, check that there is continuity between each terminal.
    Terminal Value Measure
    30 - 87 1MΩ or Higher If there is continuity, replace the relay.
    85 - 86 continuity If there is no continuity, replace the relay.

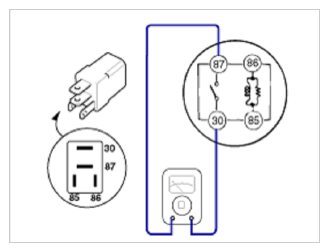

    Fig 2: Checking Continuity Between Terminal
    G09745576Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply 12V to terminal 85 and ground to terminal 86.

    Check for continuity between terminals 30 and 87.

    Terminal Continuity
    30 - 87 Below 1Ω
    85 - 86 Apply 12V

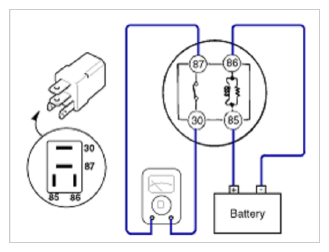

    Fig 3: Checking Continuity Between Terminals 30 & 87
    G09745577Courtesy of KIA MOTORS AMERICA, INC.
  6. If there is no continuity, replace the starter relay.
  7. Install the starter relay.
  8. Install the fuse box cover.
