Repair procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).

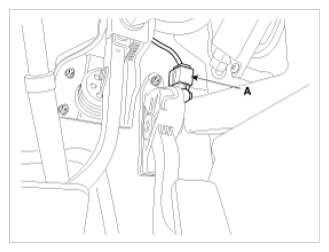

Fig 1: Identifying Accelerator Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.

Fig 2: Identifying Accelerator Pedal Module Bolt
Courtesy of KIA MOTORS AMERICA, INC.

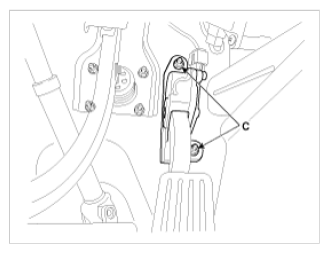

Fig 3: Identifying Accelerator Pedal Module Nuts
Courtesy of KIA MOTORS AMERICA, INC.
