Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side switch assembly (A).
    Fig 1: Crash Pad Side Switch Assembly
    G09744519Courtesy of KIA MOTORS AMERICA, INC.

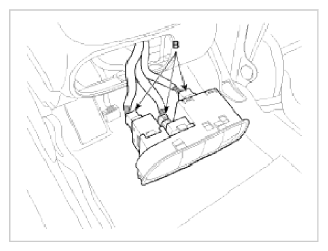

  3. Disconnect the crash pad switch connector (B).
    Fig 2: Crash Pad Switch Connectors
    G09744520Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 3: Continuity Reference Chart
    G09744521Courtesy of KIA MOTORS AMERICA, INC.
